Modem Module and Developer Kit
ST150M is the next-generation developer solution for rapid satellite application development. This integrated satellite modem module can be quickly and effectively integrated into any technology platform to develop unlimited applications across diverse markets.
Leveraging industry-leading BLE5, Nordic C, and comprehensive unified APIs, the ST150M empowers rapid firmware development, customization, and AI-enabled smart data applications at the edge.
The ST150 Developer Kit provides an integrated development platform to prototype, test, and validate technology designs before committing to hardware production.

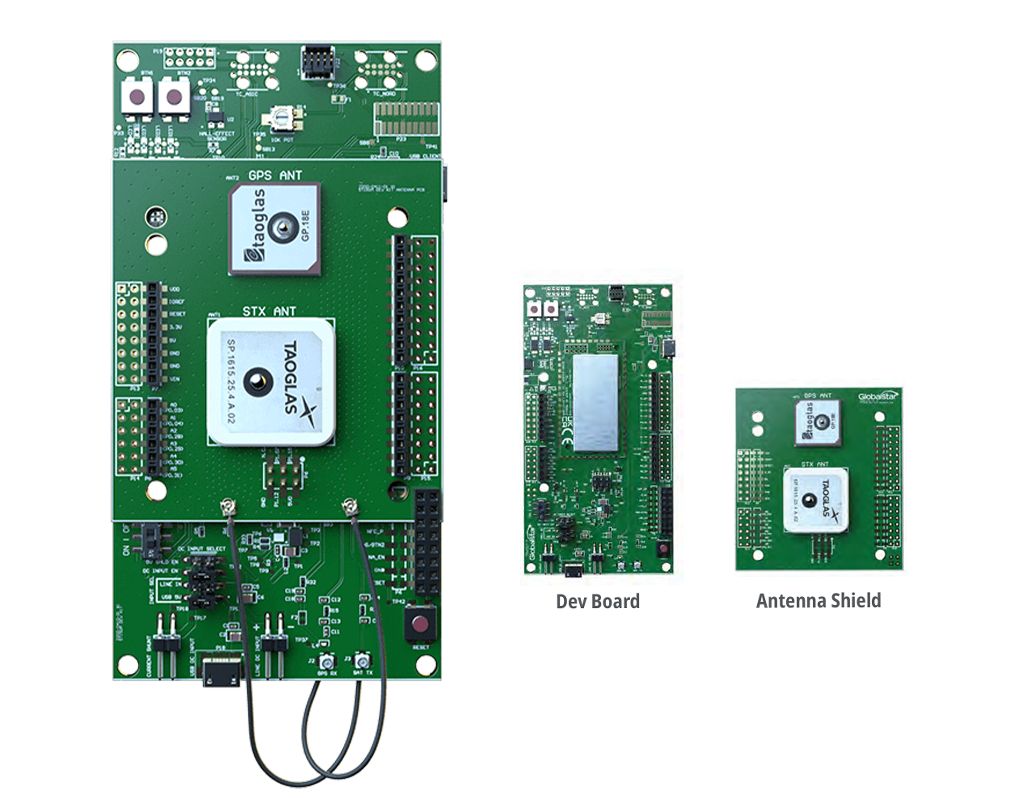

ST150M module comes pre-installed on dev board with satellite and GPS patch antennas mounted on Arduino Shield.
Development Kit includes 60 days of pre-authorized satellite usage time for development and testing.
Partners receive one-year access to Globalstar GitHub for source code, samples, and development resources.
All customer-designed ST150M products require Globalstar Network Certification. Contact our Certification Team early.
The ST150M module integrates quickly and effectively into any technology platform for unlimited application development.
Industry-leading BLE5, Nordic C, and comprehensive unified APIs enable rapid firmware development and customization.
The onboard processing capacity enables full automation of remote processes to save costs, increase productivity, improve margins, and enhance safety.
With 24 configurable Input/Outputs (I/Os), the ST150M interfaces with sensors and actuators to detect changes and take immediate, high-value action in response.
If sensors detect pressure changes, edge devices trigger alarms, control valves, and remotely shut down pumps as needed.
When water levels rise dangerously high, edge devices activate pumps, trigger alarms, and initiate complex response actions.
Moisture sensors trigger automatic pump activation to maintain optimal irrigation levels without site visits.
Monitor critical engine parameters and trigger alarms or engine shutdown when dangerous conditions are detected.
Automatically dispatch smart messages over Globalstar Satellite Network to alert managers to issues and status changes.
Eight of the 24 I/Os are configurable as analog, allowing measurement and reporting of connected analog sensor data.
Next generation satellite modem with integrated Globalstar satellite ASIC transmitter for reliable communications.
Nordic 52840 SoC with integrated voltage regulation for reliable operation and advanced processing capabilities.
Integrated GPS for location tracking and 3-axis accelerometer for motion detection and orientation sensing.
2.4 GHz chip antenna for Bluetooth. Connect sensors and external devices wirelessly with BLE5 security.
USB interface for DC input, USB client interface, u.fl connectors for GPS and ASIC, and NFC connector.
Integrated shield for GPS and satellite antennas with voltage regulation and current shunt monitoring.
Flexible line DC input for various power options. Current shunt monitoring for power management.
User LEDs and buttons for debugging. Mobile apps available for iOS and Android for remote control.
Arduino Uno Rev3 form factor. Compatible with existing Arduino shields and the full Arduino ecosystem.
Four standard message types support up to 144 bytes of data per message for flexible payload configuration.
Modular message architecture with up to 144 bytes of customizable payload for application-specific needs.
Configurable message priority and prioritized message queue for handling multiple concurrent data streams.
Configurable message retry profiles ensure critical messages are delivered reliably over the network.
Interval or time-of-day messaging. Schedule transmissions based on time, events, or device conditions.
Prioritized message queue ensures critical data is transmitted first over the satellite network.
Leverage industry-leading BLE, Nordic C, and comprehensive unified APIs. The Globalstar Application Enablement Platform provides extensive library of pre-built applications and sophisticated sensor libraries for rapid development with AI at the edge.
Provisioning, connectivity, and configuration management. Easily manage all active devices and subscriptions.
Unified dashboard with device inventory and common APIs. Control and monitor all devices from one interface.
Proactive device health monitoring with superior support. Get alerts before issues impact operations.
Leverage industry-leading BLE, Nordic C, and comprehensive unified APIs for custom application development.
Extensive library of pre-built application software. Deploy proven solutions instantly without custom coding.
Simplified design with common hardware and software across all Globalstar devices for consistency.
Sophisticated libraries for sensors, updates, configuration, and data. Secure Bluetooth connectivity.
Integrates with IIoT platforms and enterprise applications via APIs enabling intelligent edge processing.
24/7 dedicated support from our expert team. Get help with installation, integration, and development.
Comprehensive developer guides, API documentation, and technical specifications for rapid implementation.
Training resources, webinars, and certification programs for the ST150M and development platform.
One-year access to Globalstar GitHub for source code, samples, and development resources.
Regular firmware updates with new features, security patches, and performance enhancements.
Support for Globalstar Network Certification of your custom ST150M-based products.
