SmartOne Solar

Solar Powered Asset Manager

SmartOne Solar is the only solar asset tracker certified as Intrinsically Safe with ATEX Zone 0 and North American Class I Division 1 certifications for hazardous environments. Virtually maintenance-free with up to 10 years of usable service, it's engineered for the toughest applications requiring both reliability and safety compliance.

Easy to install with no harnesses, external power, or external antennas required, SmartOne Solar delivers global asset tracking with the peace of mind that comes from certified hazardous environment operation.

View Specifications Request Demo
Product image

Key Benefits

Maintenance-Free Operation

Solar power recharges batteries providing up to 10 years of usable service for tracking and monitoring without manual intervention.

Global Reliability

Delivers reliable location reporting for assets deployed worldwide with consistent performance and real-time tracking capabilities.

Easy Installation

Simple packaging requires no harnesses, external power, or external antennas. Quick deployment for immediate operational readiness.

Hazardous Environment Certified

Only solar tracker with ATEX Zone 0, Class I Division 1, and HERO certifications for safe operation in explosive atmospheres.

Flexible Reporting Modes

GPS location reporting in 4 modes with stationary/in-motion detection, theft recovery mode, and reduced messaging for battery optimization.

Advanced Monitoring Features

Speed and heading tracking, engine run time monitoring, tank level detection, and dual dry contact inputs for comprehensive asset management.

Hazardous Environment Certifications

SmartOne Solar is the only solar asset tracker certified for use in hazardous environments. Our comprehensive certifications ensure safe operation in the most demanding and regulated applications.

ATEX Zone 0

II 1 G, Ex ia IIC T4 Ga certification for international hazardous area applications meeting European standards.

Class I Division 1

North American UL certification for Groups A-D with T4 temperature rating in hazardous locations.

HERO Certified

Hazard of Electromagnetic Radiation to Ordinance certification ensuring safe operation near explosives and ordnance.

UKEX Certified

United Kingdom explosive atmosphere equipment directive compliance meeting UK and international standards.

Reporting Capabilities

SmartOne Solar offers comprehensive reporting modes tailored to your asset monitoring requirements.

Location Reporting

  • Four distinct GPS location reporting modes
  • Stationary or in-motion detection
  • Reduced messaging mode for power optimization
  • Theft recovery mode with frequent updates

Asset Monitoring

  • Speed and heading tracking
  • Engine run time monitoring
  • Tank level tracking
  • Alarm input management

Configuration Options

  • PC-based configuration software
  • Serial cable connection
  • Bluetooth wireless interface
  • Firmware updates via Bluetooth

Technical Specifications

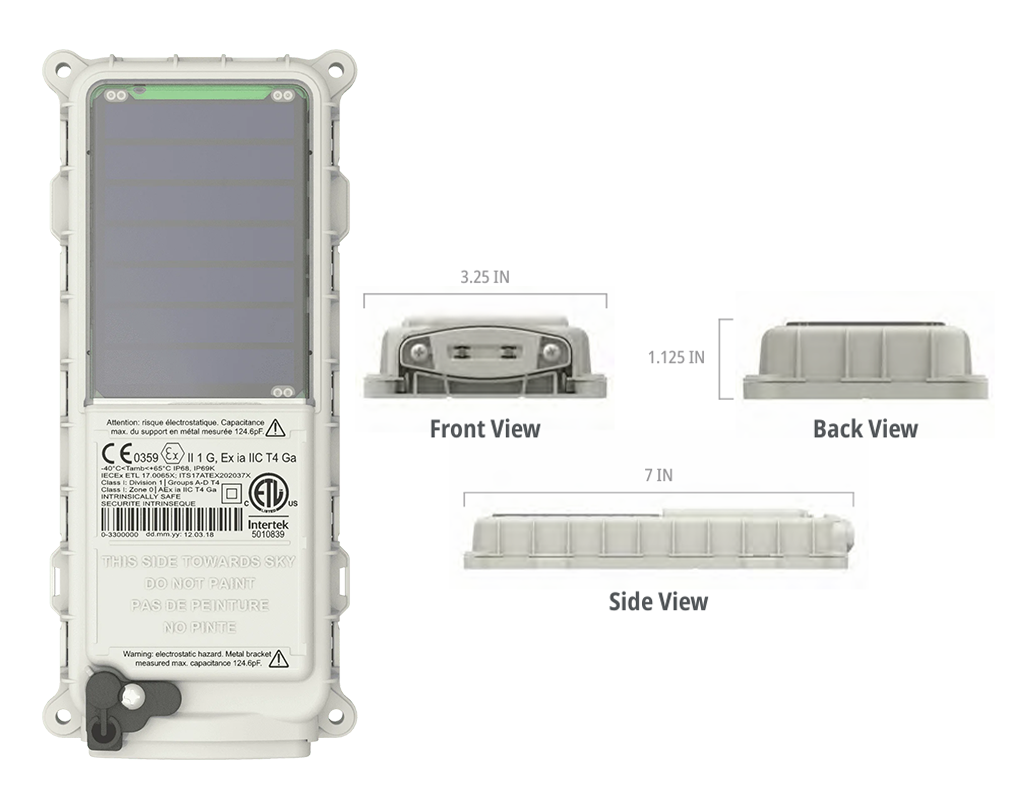

Physical Dimensions

Height
3.25 IN (8.26 cm)
Width
7 IN (17.78 cm)
Depth
1.125 IN (2.86 cm)
Unit Weight
13.5 oz / 385 g
With Mounting Bracket
40.57 oz / 1150 g

Power & Battery

Battery Type
Built-in Rechargeable NiMH
Service Life
Up to 10 years usable service
Charging Method
Solar panel (maintenance-free)
Input Voltage
10 to 48 VDC (external power)

Environmental Operating

Operating Temperature
-40°C to +65°C (-40°F to 149°F)
Humidity
0% to 95% non-condensing
Ingress Protection (IP)
IP68/69K Waterproof Rating
Altitude Range
Up to 40,000 feet

Satellite & Network

Network Technology
Global LEO Satellite Network
Network Provider
Globalstar Network
GPS System
Integrated GPS receiver

Certifications & Compliance

Intrinsic Safety

  • ATEX/IECEx: II 1 G, Ex ia IIC T4 Ga
  • Class I, Division 1, Groups A-D, T4
  • Zone 0 Applications: AEx ia IIC T4 Ga

Regulatory Approvals

  • FCC, ISED, CE, ACMA, ANATEL
  • INMETRO, ENACOM, NOM, ASEP
  • ARECOM, NCC, ICASA, TELEC, KCC, NTC
  • ITU (GMPCS), Bluetooth® SIG

Environmental Standards

  • Mil-STD-810G Tested
  • WEEE Compliant
  • IP68/69K Waterproof Rating
  • Salt Fog Corrosion Resistant

Military Testing

  • Immersion Testing
  • Impact Resistance
  • Salt Fog Corrosion
  • Shock and Vibration

Ideal For Asset Tracking

SmartOne Solar is the solution for hazardous environment tracking and the broadest range of demanding industrial applications.

Transportation & Logistics

Monitor fleet movements with real-time reporting and theft recovery in remote locations worldwide.

Oil & Gas Operations

Safe tracking of high-value field assets with hazardous environment certifications for explosive atmospheres.

Construction Equipment

Determine usage patterns and prevent theft with engine run time monitoring and movement detection.

Chemical & Hazmat

Certified for hazardous area deployment with compliance for chemical, petroleum, and explosive applications.

Marine & Offshore

Track boats, barges, and containers with global coverage and rugged waterproof construction.

Mining & Forestry

Monitor remote assets in the most challenging environments with extended service life and reliability.

Configuration & Customization

Software Configuration

PC-based configuration software provides easy setup and management of device parameters and reporting modes.

Wireless Bluetooth Interface

Configure and update firmware wirelessly via Bluetooth without physical cables for field deployments.

Serial Cable Connection

USB Configuration Cable (Part No. 2030-0261-01) for direct connection and comprehensive device control.

Reporting Parameters

Customize reporting modes, intervals, speed/heading tracking, and external sensor inputs for tailored monitoring.

External Sensor Integration

Dual dry contact inputs enable integration with tank level sensors, engine monitoring, and alarm systems.

Firmware Updates

Regular firmware updates via cable or Bluetooth keep your device current with latest features and improvements.

Available Accessories

USB Configuration Cable

Globalstar USB Configuration Cable (Part No. 2030-0261-01) for easy PC-based configuration and firmware updates.

Universal Input Cable

Globalstar Universal Input Cable (Part No. 2030-0265-04) for connecting external sensors and monitoring devices.

Stainless Steel Mounting Bracket

Globalstar Mounting Bracket (Part No. 7000-0278-01) for secure installation on various surfaces and equipment.

Bluetooth Dongle

Globalstar Bluetooth Dongle (Part No. 1950-0105-01) for wireless configuration and over-the-air firmware updates.

Comprehensive Support

Technical Support

24/7 dedicated support from our expert team. Get help with installation, configuration, and troubleshooting.

Documentation

Comprehensive user guides, certification documentation, and technical specifications for reference.

Compliance Training

Training on hazardous environment certifications and safe deployment practices for regulatory compliance.

Software Updates

Regular firmware updates with new features, performance improvements, and security enhancements.

Integration Services

Seamless integration with your existing tracking and monitoring platforms and systems.

Warranty & Service

Comprehensive warranty coverage and service options with priority support for mission-critical deployments.
