SmartOne C

Satellite Asset Manager

The SmartOne C is the market's most affordable and feature-rich tracker for locating fixed and mobile assets and transmitting sensor data. Line or battery-powered, it is a small, easy-to-mount unit ideal for sending GPS coordinates at long intervals with configurable frequency rates.

Designed for intelligent asset management, the SmartOne C provides practical solutions for tracking intermediate bulk containers, vehicles, boats, and other valuable assets to improve operating efficiency and security.

View Specifications Request Demo

Key Features

Global Asset Tracking

Track fixed and mobile assets worldwide using Globalstar's LEO satellite network. No cellular infrastructure required.

Flexible Power Options

Operates on 5V line power, 8-24V regulator cable, or standard AAA lithium batteries with 1.5+ year battery life.

Motion Sensing

Integrated accelerometer detects movement and sends alerts if assets move outside predetermined ranges.

Configurable Messaging

12 different reporting times with interval or 24-hour operation modes. Reduced messaging when asset stays stationary.

Easy Installation

Quick installation using industrial adhesives, brackets, or screw mounts. Asset-ready design with no external antennas needed.

Theft Alert Capability

Change-of-location theft alerts based on distance moved with automatic emergency notifications.

Perfect For These Applications

Vehicle & Fleet Management

Track commercial vehicles, trucks, and fleet assets across any terrain. Monitor location history and movement patterns in real-time.

Marine & Shipping

Monitor boats, cargo containers, and maritime assets across oceans. Track shipments without cellular dependency.

Container Tracking

Track intermediate bulk containers (IBCs), shipping containers, and valuable cargo across land and sea routes.

Equipment & Asset Management

Monitor construction equipment, machinery, and field assets to prevent loss and optimize asset utilization.

Technical Specifications

Physical Specifications

Dimensions

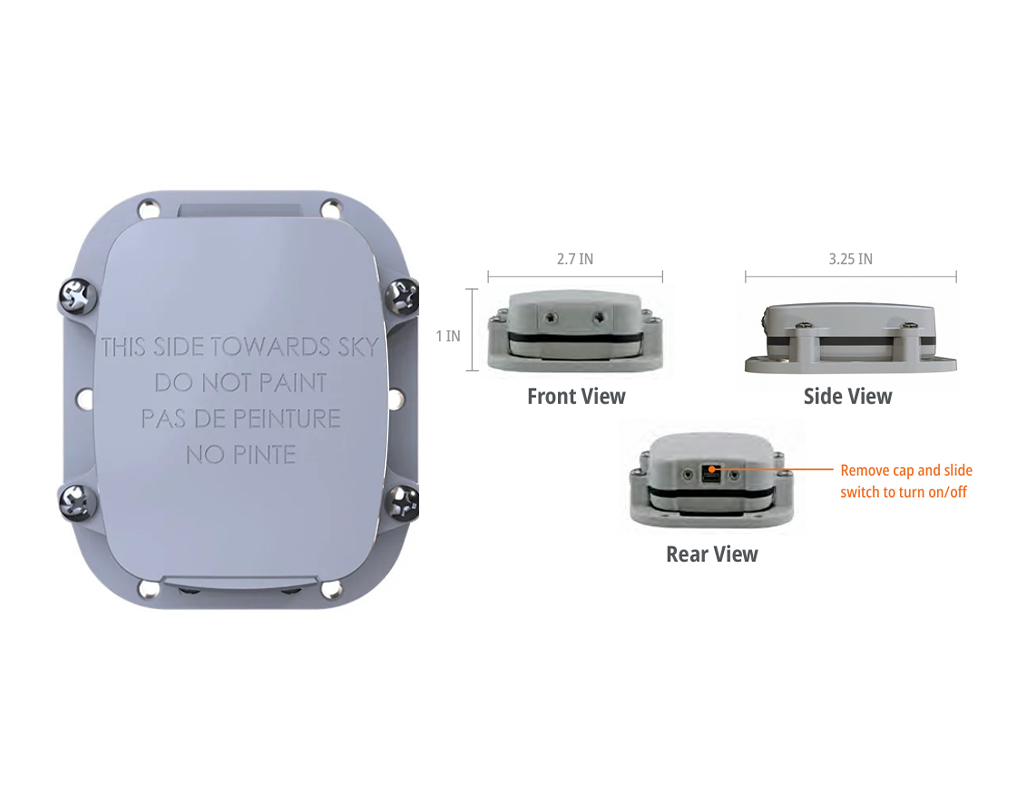

2.7 IN (H) × 3.25 IN (W) × 1 IN (D) with brackets

Weight

3.6 oz / 102g (with 4 batteries and mounting hardware)

Power Specifications

Line Power Options

5V DC or 8-24V Input Cable with regulator

Battery Type

4× AAA Energizer Ultimate Lithium (1.5V)

Battery Life

1.5+ years (no proprietary batteries needed)

Operating Environment

Operating Temperature

-30°C to +60°C (standard operation)

Extended Range

-40°C to +85°C (with potential performance degradation)

Ingress Protection

NEMA 4X / IP68 (waterproof, submersible)

Certifications & Standards

FCC, ISED, CE, UKCA, ACMA
ANATEL, ENACOM, NOM, MTC
ARECOM, NCC, ICASA, TELEC
KCC, NTC, ITU (GMPCS)
SAE J1455 MIL STD 810
RoHS Compliant

Messaging Features

12 programmable sleep-time-of-wake settings
Interval or 24-hour operation mode
Alternate reporting schedules
Low battery message alerts
Supervisory reporting triggered by alarm/motion
Reduced messaging mode for stationary assets

Satellite & Network

Network

Globalstar LEO Satellite Network

Coverage

Global (±70 degrees latitude)

GPS Accuracy

Standard GPS location transmission

Complete Feature Overview

Core Capabilities

Standard wake, GPS locate, transmit, resume sleep
Integrated accelerometer for motion detection
Change-of-location theft alert reporting
Automatic battery backup switching
User-defined custom messages via serial input

Configuration Options

Windows PC configuration software
Motion sensor/vibration parameters
Contact closure parameters
Hardware on/off for GPS re-centering
Diagnostic message capability

Connectivity

Serial (TTL) I/O capability
External sensor integration support
User-defined message transmission
Smart sensor compatibility
Remote passive sensor interface

How to Get Started

Install

Quick installation using industrial adhesives, brackets, or screw mounts. No external antennas or complex setup needed.

Configure

Use Windows configuration software to set reporting intervals, messaging schedules, motion thresholds, and alert parameters.

Track & Monitor

Deploy globally and start receiving GPS coordinates and asset status updates via satellite. Monitor in real-time from anywhere.

Available Accessories

USB Configuration Cable

Easily configure SmartOne C settings and parameters with standard USB connection to Windows PC.

Combined Serial Cable

5V line power, serial communication, and I/O all in one cable for simplified connections.

Dry Contact Input Cable

8-24V dry contact input cable with serial and I/O capabilities for advanced integrations.

AAA Lithium Batteries

Energizer Ultimate Lithium replacement batteries with 1.5+ year lifespan. No proprietary batteries needed.

Mounting Brackets

Industrial-grade mounting brackets for secure installation on various surfaces and equipment.

Installation Services

Professional installation and configuration support available for complex asset tracking deployments.

Comprehensive Support

Technical Support

24/7 dedicated support from our expert team for configuration, troubleshooting, and asset tracking assistance.

Documentation

Complete installation guides, configuration manuals, and technical specifications for rapid deployment.

Training Resources

Configuration software tutorials and best practices for asset tracking and fleet management optimization.

Software Updates

Regular firmware updates with new features, performance improvements, and enhanced asset tracking capabilities.

Analytics Support

Integration assistance with tracking platforms and analytics tools for comprehensive asset management.

Warranty & Service

Comprehensive warranty coverage and professional service options for mission-critical asset tracking.
