GSatSolar

Solar-Powered Satellite Tracker

The GSatSolar is your solution for off-grid tracking of assets, remote IoT operations, and livestock tracking. The low-cost, compact, satellite-based terminal is easy to install and built for rugged outdoor use.

Powered by a solar panel that recharges the battery, GSatSolar is rugged, reliable enough to track anything that moves, and small and light enough to go unnoticed, regardless of where or how you mount it.

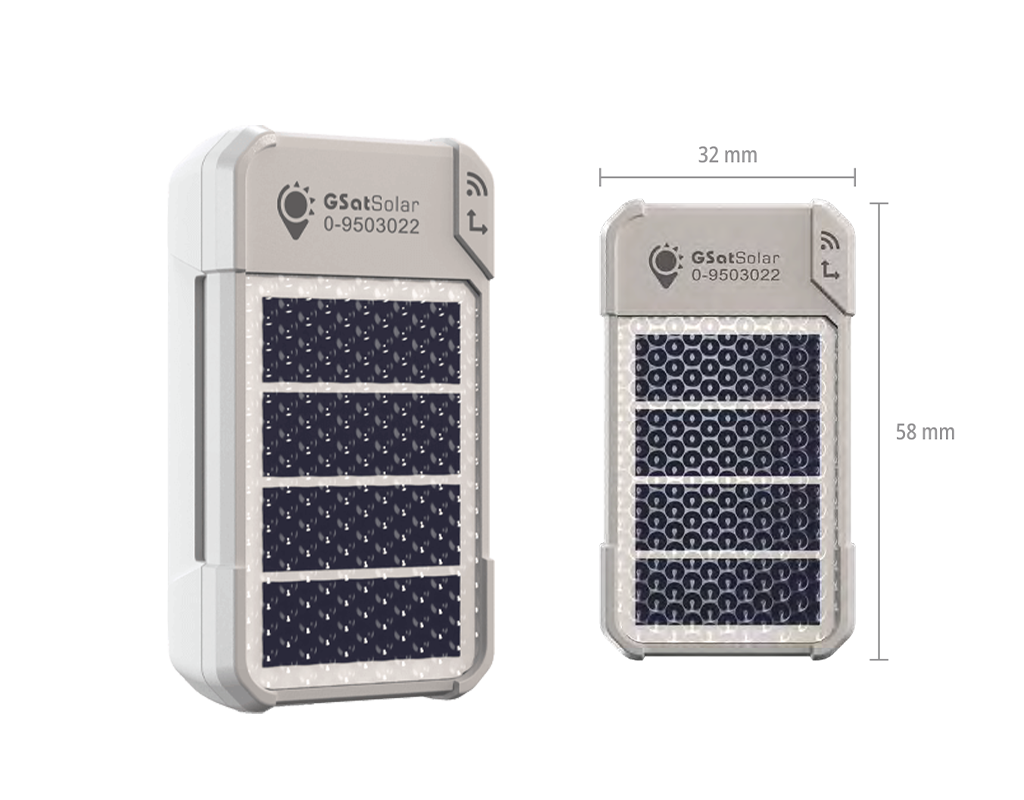

Product image

Key Features

Powered By The Sun

Each unit is powered by a solar panel that recharges the battery, eliminating the need for frequent battery replacements.

Tough Enough For Outdoor Use

Rugged and reliable enough to track anything that moves in harsh outdoor environments.

Modular Mounting Options

Whether it has four legs or four wheels, there is a mount that will work for you.

Low Cost Asset Tracking

The low price makes it easy, sensible and affordable to get started with any asset.

Compact Tracking Terminal

Small and light enough to go unnoticed, regardless of where or how you mount it.

Easy To Use

Start today with three easy steps: Activate, Mount, Track. Ready out-of-the-box configuration.

Perfect For These Applications

Livestock Tracking

Monitor cattle, sheep, and other livestock in real-time. Track herd location, prevent theft, and ensure animal safety across large pastures.

Equipment Monitoring

Track farm equipment, construction machinery, and vehicles in remote locations where cellular coverage is unavailable.

Remote Asset Tracking

Monitor remote assets, off-grid installations, and critical infrastructure with continuous satellite connectivity.

IoT Operations

Deploy IoT sensors and monitoring devices in off-grid locations with reliable satellite-based data transmission.

Technical Specifications

Components

  • Nordic core processor
  • Solar panel
  • Rechargeable battery
  • GPS receiver
  • Embedded Satellite TX and GPS RX antenna
  • Bluetooth Low Energy with antenna
  • Serial connector
  • FCC, ISED, CE modular certification

Dimensions & Weight

Dimensions
Length: 57.1mm (2.25") | Width: 31.8mm (1.25")
Terminal Weight
22.2 grams (0.783oz)
Animal Ear Tag Weight
4 grams (0.141oz)
Multipurpose Clip Weight
5 grams (0.176oz)

Battery & Power

Charging Method
Solar
Solar Charge Rate
0.125 watts
Battery Type
Lithium Polymer
Battery Capacity
150mAh
Charge Time
Depends on sun exposure

Environmental

Operating Temperature
-30°C to +50°C
Altitude Range
Up to 40,000 feet
Ingress Protection (IP)
IP68 (certification pending)

GPS & Navigation

GPS Receiver Type
72-channel u-blox M8 engine
Supported Systems
GPS/QZSS L1 C/A, GLONASS L1OF, BeiDou B1I, Galileo E1B/C

Certifications

Transmitter Module
FCC ID: L2V-ST100
International Compliance
FCC, ISED, CE Certified

Complete Feature Overview

Core Features

  • Compact tracking device
  • Solar-powered operation
  • Low-cost tracking solution
  • Built tough for outdoor use
  • Ready out-of-the-box

Hardware Features

  • Modular mounting options
  • Rugged construction
  • Waterproof (IP68)
  • Lightweight design
  • Satellite coverage enabled

Connectivity

  • Satellite communication
  • GPS positioning
  • Bluetooth Low Energy
  • Multi-GNSS support
  • Global coverage

How to Get Started

1

Activate

Register your GSatSolar device and activate it on the Globalstar network through our simple online portal.

2

Mount

Choose your mounting option and securely attach the device to your asset. Select from multiple mounting configurations.

3

Track

Start receiving real-time GPS location updates via satellite. Monitor your assets 24/7 globally.

Why Choose GSatSolar

Feature GSatSolar Cellular GPS Traditional Satellite
Off-Grid Coverage
Solar Power Option
Low Cost
Compact Design
Rugged/Waterproof
Global Coverage

Comprehensive Support

Technical Support

24/7 dedicated support from our expert team. Get help with installation, activation, and troubleshooting.

Documentation

Comprehensive user guides, quick start manuals, and technical documentation for easy reference.

Training

Learn how to maximize your GSatSolar with online training sessions and webinars.

Software Updates

Regular firmware updates and feature enhancements keep your device running optimally.

Integration Services

Seamless integration with your existing tracking and monitoring platforms.

Warranty & Service

Comprehensive warranty coverage and service options for peace of mind.

Technical Specifications

Download Specs Sheet
